Parts from the
Peterbilt Air Leaf Rear Suspension
Login: Visitor@nsihd.com #1: Cash/Counter Customer
Pic Description Wt
 Drive Axle Front Hanger Pete AIR LEAF 35.00
PE10A
PE10APE10A

Photos are for reference only; the actual part may show minor variances from the picture

4" Spring Eye Block UsesPE9L-Kit &PE10D Bolt 7.20
PE9L-KIT
PE9L-KITPE9L-KIT

Photos are for reference only; the actual part may show minor variances from the picture

Spring Eye Bushing Kit for PE10A
Parts
1-HE10F, 2-PE10M, 1-PE10P, 2-PE9L, 2-PE9Q-U, 1-RE10H,
7.32
  Polyurethane Spring Eye Bushing Kit for PE10A Flag_US
Parts
1-HE10F, 2-PE10M, 1-PE10P, 2-PE9L-U, 2-PE9Q-U, 1-RE10H,
7.25
PE9L
PE9LPE9L

Photos are for reference only; the actual part may show minor variances from the picture

Spring Eye Bushing for PE10A(2 req per Block) 0.31
PE9L-U
PE9L-UPE9L-U

Photos are for reference only; the actual part may show minor variances from the picture

Polyurethane Spring Eye Bshng for PE10A(2 req per Eye) Flag_MX 0.27
PE9Q-U
PE9Q-UPE9Q-U

Photos are for reference only; the actual part may show minor variances from the picture

Polyurethaner Spring Eye Washer for Pete 0.10
 Compression Washer 1"x3 5/16"x3/8" 0.82
 Sleeve 1 3/4"OD x 1 1/64"ID x 5 3/4"L 2.64
HE10F
HE10FHE10F

Photos are for reference only; the actual part may show minor variances from the picture

Bolt 1"-14x8 1/2" Gr8 2.22
RE10H
RE10HRE10H

Photos are for reference only; the actual part may show minor variances from the picture

Nylon Lock Nut 1"-14 0.28
PE10D
PE10DPE10D

Photos are for reference only; the actual part may show minor variances from the picture

Bolt Flnged 3/4"-10X2 1/4" Gr8 0.46

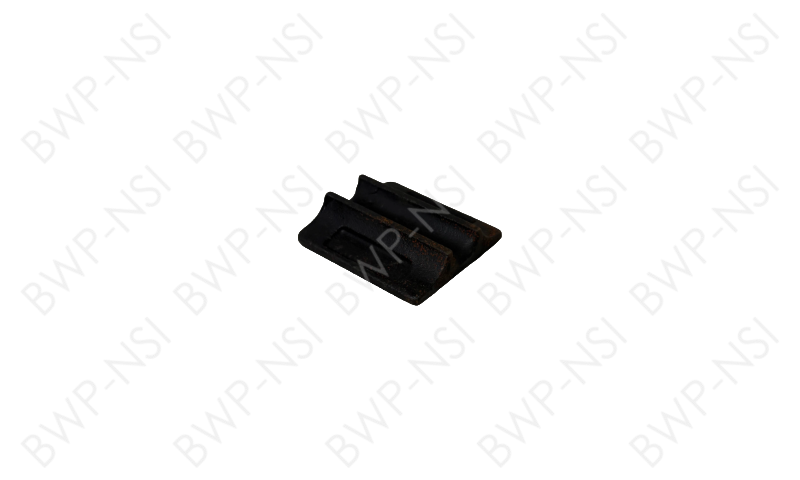

PE5B
PE5BPE5B

Photos are for reference only; the actual part may show minor variances from the picture

Top Plate, Square Cast 1.57
UKSQ354G8
UKSQ354G8UKSQ354G8

Photos are for reference only; the actual part may show minor variances from the picture

Ubolt Kit, Sq ¾"x5"x4"W Gr8 (2 Bolts, 4 Nuts, & 4 Washers) Flag_US 5.19
UKSR1164G8
UKSR1164G8UKSR1164G8

Photos are for reference only; the actual part may show minor variances from the picture

Ubolt Kit, Sr 1"x16"x4"W Gr8 (2 Bolts, 4 Nuts, & 4 Washers) Flag_US 16.70

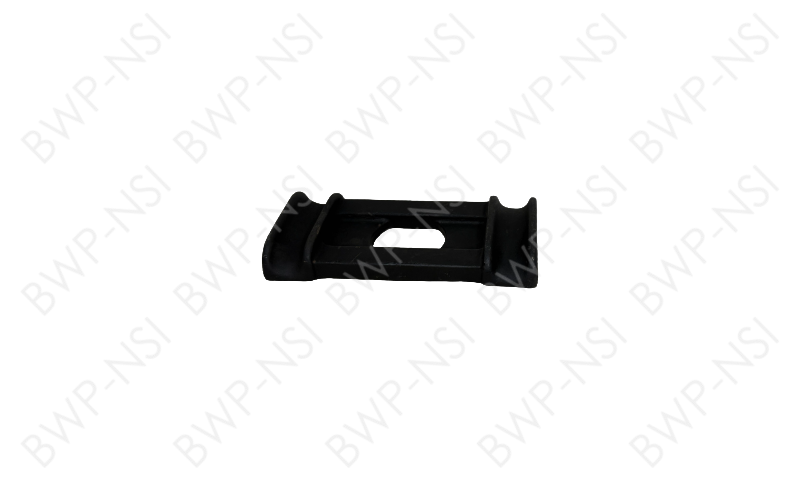

PE5A
PE5APE5A

Photos are for reference only; the actual part may show minor variances from the picture

Top Plate, Semi-Round Cast 4.45
PE10L
PE10LPE10L

Photos are for reference only; the actual part may show minor variances from the picture

RH Air Spring Paddle 53.60
PE10K
PE10KPE10K

Photos are for reference only; the actual part may show minor variances from the picture

LH Air Spring Paddle 53.60
 Shock Bushing 0.07
SHB9B-U
SHB9B-USHB9B-U

Photos are for reference only; the actual part may show minor variances from the picture

Shock Eye Bushing, Urethane Flag_MX 0.06
PE4A
PE4APE4A

Photos are for reference only; the actual part may show minor variances from the picture

Fab Trqarm(22 7/8") W/ Bushing
ApplicationC to CBushings IncludedBushings - # requiredBushing kits - # requiredMaterialType
Petebilt22 7/8"Yes - 2HE9J - 2FABFIXED,
18.18
 Fab Trqarm(22 7/8") w/ Poly Bushing Flag_US 17.45
HE9J
HE9JHE9J

Photos are for reference only; the actual part may show minor variances from the picture

Torque Rod Bushing use w/ HE9J-T Press Tool
O.D.LengthOA LengthInsidePinDiaCen-Cen
2 9/16"2 3/16"5 3/4"5/8"4 3/8",
3.53
HE9J-U
HE9J-UHE9J-U

Photos are for reference only; the actual part may show minor variances from the picture

Polyurethane Torque Arm Bush use w/ HE9J-T Press Tool Flag_US 3.76
M-3263
M-3263M-3263

Photos are for reference only; the actual part may show minor variances from the picture

AirValve Neway Style Height Control 2.42
M-5098
M-5098M-5098

Photos are for reference only; the actual part may show minor variances from the picture

Leveling Valve Linkage Universal 0.48
PE10C
PE10CPE10C

Photos are for reference only; the actual part may show minor variances from the picture

Spring Center Bolt 3/4"-16 Special Head use w/KW10B 0.66
PE109
PE109PE109

Photos are for reference only; the actual part may show minor variances from the picture

3 Leaf Air Ride Spring Flag_US
Ind Std#WidthLengthLength2EyeEye2ArchLeavesPackThkCapacityComments
75-109420-3/85-3/8PL1 HOOK UP PL2 HOOK DWNFLAT32-11/169500-10000, ,
79.30
PE129
PE129PE129

Photos are for reference only; the actual part may show minor variances from the picture

2 Leaf Air Ride Spring MADE IN MEXICO Flag_MX
Ind Std#WidthLengthLength2EyeEye2ArchLeavesPackThkCapacityComments
75-129420-3/84-1/4PL1 Hook Up L.E.PL2 Hook Down L.E.FLAT2Lf/1.212-9/1620000 Per Axle,
63.00
PE129-I
PE129-IPE129-I

Photos are for reference only; the actual part may show minor variances from the picture

2Lf Air Ride Spring MADE IN TURKEY
Ind Std#WidthLengthLength2EyeEye2ArchLeavesPackThkCapacityComments
75-129420-3/84-1/4PL1 Hook Up L.E.PL2 Hook Down L.E.FLAT2Lf/1.212-9/1620000 Per Axle,
62.00
