Parts from the
Volvo Corporate Air Suspension |
Login: Visitor@nsihd.com #1: Cash/Counter Customer
|
| Pic | Description | Wt | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Drive Axle Rear Hanger Cast | 29.40 | |||||||||||
 VW10A
 Photos are for reference only; the actual part may show minor variances from the picture | Wear Pad | 1.02 | ||||||||||
 HE10C
 Photos are for reference only; the actual part may show minor variances from the picture | Bolt 3/4"-16x6 1/2" Gr8 | 0.85 | ||||||||||
| Rebound Pin | 0.70 | |||||||||||
| Rebound Bolt 3/4"-10x6 1/2" | 0.92 | |||||||||||
 HE9AH
 Photos are for reference only; the actual part may show minor variances from the picture | Rubber Bushing, High Confinmnt High Confinmnt Version of HE9J
|
3.64 | ||||||||||
 HE9J
 Photos are for reference only; the actual part may show minor variances from the picture | Torque Rod Bushing use w/ HE9J-T Press Tool
|
3.53 | ||||||||||
 HE9J-U
 Photos are for reference only; the actual part may show minor variances from the picture | Polyurethane Torque Arm Bush use w/ HE9J-T Press Tool  |
3.76 | ||||||||||
 VW4E
 Photos are for reference only; the actual part may show minor variances from the picture | Volvo Torque Arm 22 1/8" |
17.17 | ||||||||||

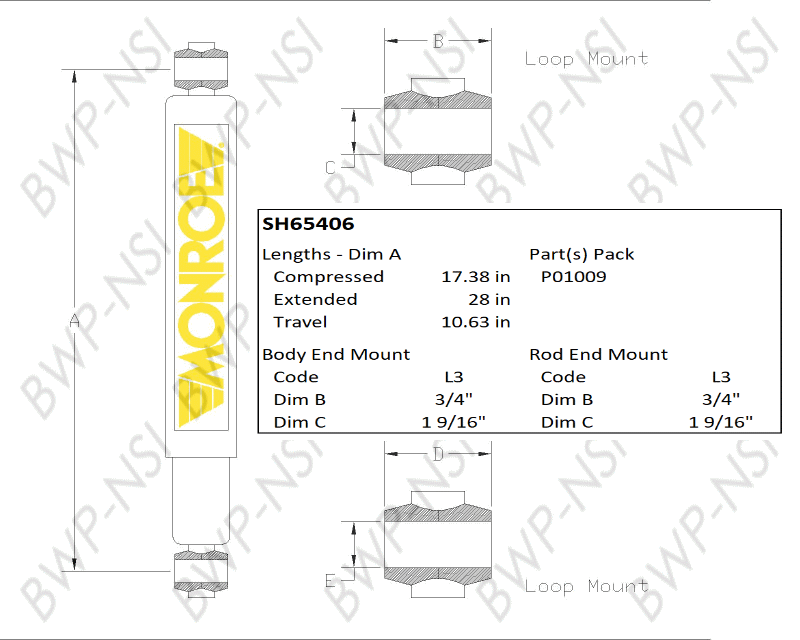

 SH65406
 Photos are for reference only; the actual part may show minor variances from the picture | Monroe Shock Absorber Gas-Magnum 65 Series |
9.88 | ||||||||||

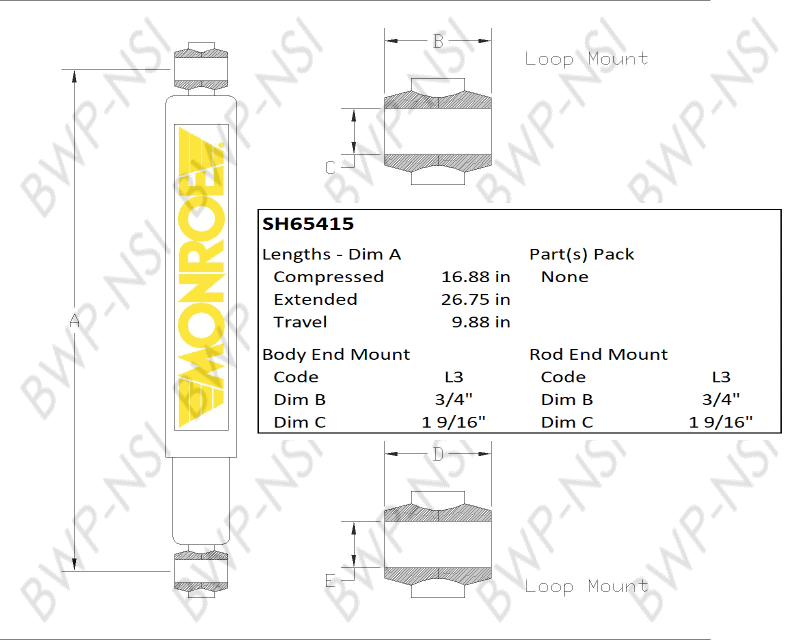

SH65415
Photos are for reference only; the actual part may show minor variances from the picture | Monroe Shock Absorber Gas-Magnum 65 Series |
9.40 | ||||||||||
| Monroe Shock Absorber Gas-Magnum 65 Series |
9.50 | |||||||||||
 M-3263
 Photos are for reference only; the actual part may show minor variances from the picture | AirValve Neway Style Height Control | 2.42 | ||||||||||
 M-5098
 Photos are for reference only; the actual part may show minor variances from the picture | Leveling Valve Linkage Universal | 0.48 | ||||||||||
 KW10D
 Photos are for reference only; the actual part may show minor variances from the picture | Bolt 5/8"-18x6" Gr8 | 0.57 | ||||||||||
| Trq Arm Alignment Shim 4 3/8" Cntr .063" Thck |
0.14 | |||||||||||
 AS8829
 Photos are for reference only; the actual part may show minor variances from the picture | Firestone Air Spring |
11.99 | ||||||||||
 AS1R12615
 Photos are for reference only; the actual part may show minor variances from the picture | Goodyear Air Spring |
12.00 | ||||||||||
| SpringRide Air Spring Alternate 1R12615 |
14.12 | |||||||||||
 AS9213
 Photos are for reference only; the actual part may show minor variances from the picture | Firestone Air Spring |
13.38 | ||||||||||
 AS1R12090
 Photos are for reference only; the actual part may show minor variances from the picture | Goodyear Air Spring |
17.22 | ||||||||||
 AS9219
 Photos are for reference only; the actual part may show minor variances from the picture | Firestone Air Spring |
13.37 | ||||||||||
 AS1R12182
 Photos are for reference only; the actual part may show minor variances from the picture | Goodyear Air Spring |
17.14 |
